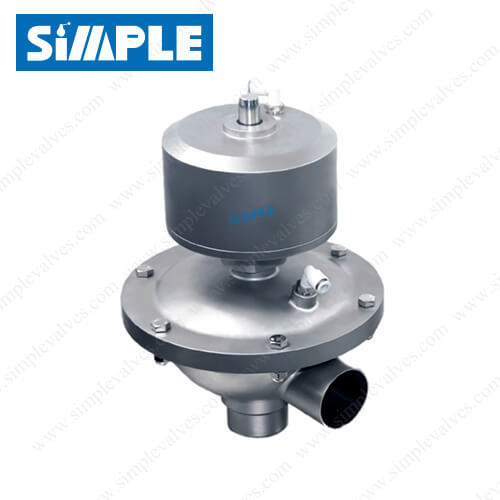

Sanitary Constant Pressure Modulating Valve, Inlet or Outlet Constant
Reference: SV-8
Sizes available: 1"-2 1/2" (DN25, DN65)
End connections: butt-welded, tri-clamp, threaded
Body material: AISI 316L (1.4404)
Seal material: EPDM+PTFE (FDA177.2600)
Max. working pressure: 116 psi (8 bar), according to the air supply pressure
Max. working pressure (option): 174 psi (12 bar) with Supercharger
Temperature range: 14°F to 302°F (-10℃ to 150℃)
Surface Finish: internal finished Ra≤25µin (0.6µm), external sand blast
Operation: compressed air
INQUIRY
Sizes available: 1"-2 1/2" (DN25, DN65)
End connections: butt-welded, tri-clamp, threaded
Body material: AISI 316L (1.4404)
Seal material: EPDM+PTFE (FDA177.2600)
Max. working pressure: 116 psi (8 bar), according to the air supply pressure
Max. working pressure (option): 174 psi (12 bar) with Supercharger
Temperature range: 14°F to 302°F (-10℃ to 150℃)
Surface Finish: internal finished Ra≤25µin (0.6µm), external sand blast
Operation: compressed air
APPLICATION
SIMPLE SV-8 series sanitary constant pressure modulating valve can ensure a stable pressure at outlet or inlet. There are V type (inlet constant pressure) and A type (outlet constant pressure) to choose from.
● V type (inlet constant pressure): maintain constant pressure at the valve inlet. Such design is specially applied at the back of heat exchanger. It is used as a safety valve.
● A type (outlet constant pressure): maintain constant pressure at the outlet. Such design is used as the front of the filling machine and bottle filling machine.
V Type (Inlet Constant)
A Type (Outlet Constant)
TECHNICAL DATA
| Body Material | AISI 316L (1.4404) |
| Seal Material | EPDM+PTFE (FDA177.2600) |
| Max. Working Pressure | 116 psi (8 bar), accrording to the air supply pressure |
| Max. working pressure (option) | 174 psi (12 bar) with Supercheuger |
| Working Temperature | 14°F to 302°F (-10℃to 150℃) |
| Internal Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 25µin as default. |
| External Finish | Sand blast |
| End Connections | butt-welded, tri-clamp, threaded |
| Operation | compressed air |
DIMENSIONAL DRAWINGS
Please CONTACT FACTORY.
