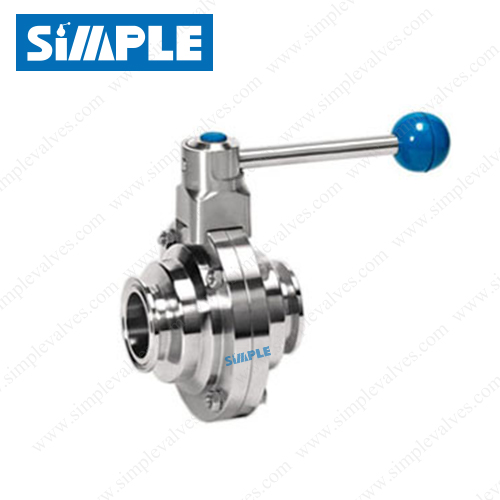

Food Grade Stainless Steel Ball Valve, Pneumatic Butterfly-type Ball Valve
Reference: SV-2PBBC
Sizes available: 1" to 4", DN25 to DN100
End connection: tri-clamp / tri-clamp
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: EPDM, VMQ (Silicone), Viton (FPM)
Max. working pressure: 145psi (10bar)
Operation: vertical actuator, 304 material, NC/NO/AA
Actuator air pressure: 58 ~ 102psi (4 ~7bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
INQUIRY
Sizes available: 1" to 4", DN25 to DN100
End connection: tri-clamp / tri-clamp
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: EPDM, VMQ (Silicone), Viton (FPM)
Max. working pressure: 145psi (10bar)
Operation: vertical actuator, 304 material, NC/NO/AA
Actuator air pressure: 58 ~ 102psi (4 ~7bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
APPLICATION
SV-2PBBC series is a pneumatc type butterfly-type ball valve. With good capacity in dealing with viscous medium or particulate, it is widely used in food, beverage, pharmaceutical and chemical industrial piping system, especially the brewing industry.
TECHNICAL DATA
| Body Material | AISI 304 or 316L (1.4301 / 1.4404) |
| Other Steel Parts | AISI 304 |
| Seat Material | EPDM, VMQ (Silicone), Viton (FPM) |
| Max. Working Pressure | 145psi (10bar) for DN25/1″-DN100/4″ |
| Working Temperature | EPDM: 14 ~ 248°F (-10 ~ 120°C) |
| Silicone: -58 ~ 356°F (-50 ~ +180°C) | |
| Viton (FPM): -22 ~ 428°F (-30 ~ +220°C) | |
| Internal Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| External Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| End Connections: | butt-welded, sanitary tri-clamp, male and female threaded, flanged, I-line or others upon request. |
| Pneumatic Actuator Types | Normally Closed (NC) – Air to open and spring to close; Normally Open (NO) – Air to close and spring to open; Air to Air (AA) – Air to open, air to close. |
| Actuator air pressure | 58 ~ 102psi (4 ~ 7bar) |
| Electric Actuator Types | ON/OFF Type Intelligent Modulating Type |
| Units for intelligent control and indication | Proximity Switches (position sensor) Limit Switch C-top control IL-top control (Positioner) |
DESIGN FEATURES
Design Features
● All stainless construction, forged 304 or 316L grade stainless steel
● Free maintenance.
● Portable and compact.
● Small torque.
● Drainable.
● Seats and gaskets comply with FDA177.2600
● Valve body can be replace with variety of connections, the face to face length will not change.
Operations
● Handles
● Actuators
Pneumatic stainless steel actuator (vertical type)
Pneumatic aluminum actuator (horizontal type)
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Switch
C-top control
IL-top control (Positioner)
