Sanitary Mixproof Butterfly Valve, Single Seat, Manual Operation (Type A)
Reference: SV-1MPAMW
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: EPDM, VMQ (Silicone) or Viton (FPM), FDA approved.
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Operation: 3-position pull handle as the product photo showed
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
INQUIRY
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: EPDM, VMQ (Silicone) or Viton (FPM), FDA approved.
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Operation: 3-position pull handle as the product photo showed
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
APPLICATION
SV-1MPAMW series a manually operated Sanitary Mixproof Butterfly Valve (A type) with single seat design. As a process element for the sepatation of media, it is widely used in variety of applicaitons. AV-1MPAMW butterfly valve operates manually.
The A type Sanitary Mix-proof Butterfly Valve is with one disc and two leakage paths. The leakage paths can be cleaned/flushed when necessary. The two cleaning connections can be integrated into CIP circuit, it can be cleaned when the valve is closed.
TECHNICAL DATA
| Body Material | AISI 304 or 316L (1.4301 / 1.4404) |
| Other Steel Parts | AISI 304 |
| Seat Material | Silicone (default) |
| Seat Options | EPDM or Viton (FPM) |
| Max. Working Pressure | 145psi (10bar) for DN25/1″-DN100/4″ 116psi (8bar) for DN125/5″-DN150/6″ 73psi (5bar) for DN200/8″-DN300/12″ |
| Working Temperature | EPDM: 14 ~ 248°F (-10 ~ 120°C) |
| Silicone: -58 ~ 356°F (-50 ~ +180°C) | |
| Viton (FPM): -22 ~ 428°F (-30 ~ +220°C) | |
| Sterilization Temperature | 150°C (302°F), Max. 20 min |
| Internal Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| External Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| End Connections | butt-welded, sanitary tri-clamp, male and female threaded, flanged, I-line or others upon request. |
| Handle Types | 4-position Pull handle; multi-position handle with plastic cover or in pure stainless steel, lockable multiposition handle. |
DESIGN FEATURES
Design Features
● All stainless construction, forged 304 or 316L grade stainless steel body & disc.
● FDA-approved seat materials: EPDM, Silicone, Viton (FPM).
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4)
● Manual handle, pneumatic actuator and electric actuator are interchangeable
● A wide selection of different end connections
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE
● Certificates: 3A, FDA, PED 97/23/EC, ISO9001/2008
● Suitable for low and medium viscosity fluids
● 100% hydraulic tested / 100% inspected
● Repair Kits available consisting of seat and bushings
Operations
● Handles
Pull handle, three or four positions
Multipositioning handle with plastic cover
Multipositioning handle with stainless steel cover
Lockable multiposition handle
● Actuators

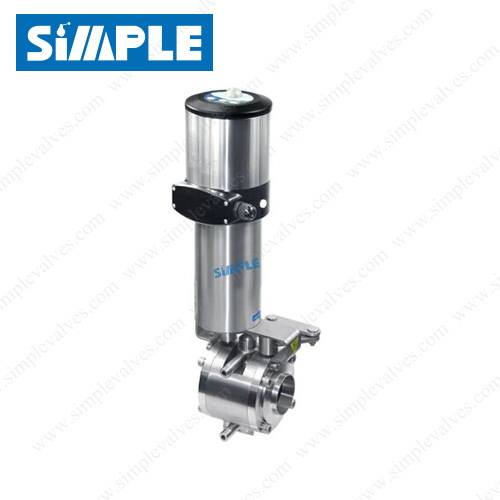

Pneumatic stainless steel actuator (vertical type)
Pneumatic aluminum actuator (horizontal type)
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Switch
C-top control
IL-top control (Positioner)
