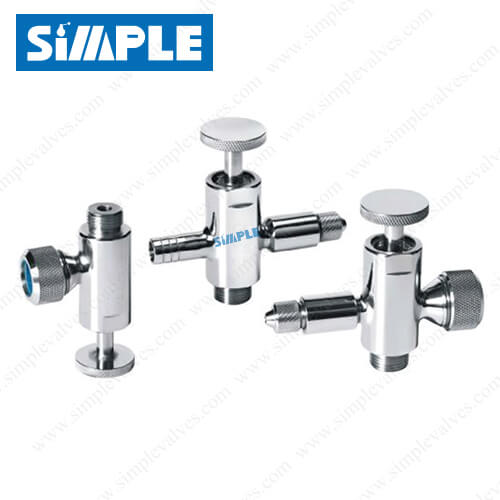

Sanitary Sample Valve with Elliptic Handle, Manual Type
Reference: SV-7
Sizes available: 1/2", 1" (DN15, DN25)
Inlet connections: butt-welded, tri-clamp, threaded, tank connector, multi-channel pipeline connector
Outlet connections: butt-welded, tri-clamp, hose barb.
Body material: AISI 304, AISI 316L
Seal material: PTFE
Max. working pressure: 145psi (10bar)
Min. working pressure: vacuum
Temperature range: 14°F to 248°F (-10°C to 120°C)
Operation: round or elliptic handle
INQUIRY
Sizes available: 1/2", 1" (DN15, DN25)
Inlet connections: butt-welded, tri-clamp, threaded, tank connector, multi-channel pipeline connector
Outlet connections: butt-welded, tri-clamp, hose barb.
Body material: AISI 304, AISI 316L
Seal material: PTFE
Max. working pressure: 145psi (10bar)
Min. working pressure: vacuum
Temperature range: 14°F to 248°F (-10°C to 120°C)
Operation: round or elliptic handle
APPLICATION
SV-7 series stainless steel sampling valve is mainly applied to extract samples from tanks or pipelines. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
TECHNICAL DATA
| Body Material | AISI 304, AISI 316L |
| Seal Material | PTFE |
| O-ring Material | NBR |
| Spring Material | AISI 304 |
| Max. Working Pressure | 145psi (10bar) |
| Working Temperature | 14°F to 248°F (-10°C to 120°C) |
| Internal Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| External Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| End Connections | butt-welded, tri-clamp, threaded, tank connector, multi-channel pipeline connector. |
| Handle Types | round handle or elliptic handle |
