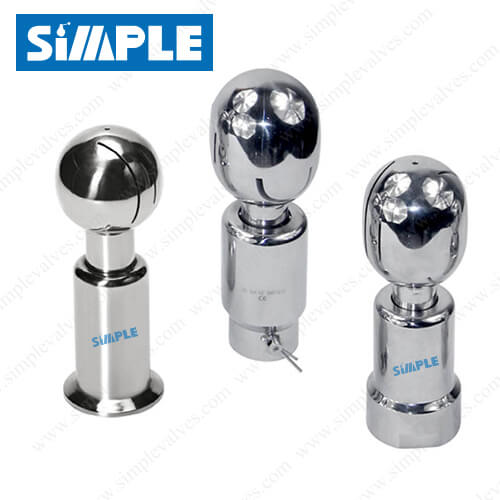

Sanitary Tank Washing Nozzle, Rotary Jet Head (360°)
Reference: SV-13JH
Sizes available: 1"-1 1/2" (DN25-DN40)
Body Material: AISI 316L/1.4404
Seal Material: Teflon (PTFE)
Cleaning radius: 14 meters
Flow rate: 4-45m³
Inlet pressure: 58-145psi (4-10 bar), suggest pressure 87 psi (6 bar)
Max. termperature: 203°F (95°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default
INQUIRY
Sizes available: 1"-1 1/2" (DN25-DN40)
Body Material: AISI 316L/1.4404
Seal Material: Teflon (PTFE)
Cleaning radius: 14 meters
Flow rate: 4-45m³
Inlet pressure: 58-145psi (4-10 bar), suggest pressure 87 psi (6 bar)
Max. termperature: 203°F (95°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default
APPLICATION
SV-13JH series Tank Washing Nozzle is hygienic tank cleaner with 360° coverage in a given tank or process container. The rotary jet head is driven by flow liquid through impeller, increase the pressure and flow will increase the length of the jet and the impact to the tank/vessel wall.
SV-13JH rotary jet head is with unique self cleaning fuction, its internal is completely clean. It is a kind of advanced irrigation cleaner used in food, beverage, dairy, pharmaceautical,chemical treatment industries and most transportation equipments.
DESIGN FEATURES
Design Features
● Self cleaning and self lubricated
● Designed for use where efficient, high impact cleaning is required
● 360°, 180° up, and 180° down wash patterns
● Variable cycle times
● High impact cleaning
● Low liquid consumption
● Hygienic design
TYPICAL APPLICATIONS
● Fixed installation CIP systems
● Process containers and reactor
● Storage tank
● Transportation equipment
● Fermentation
● Yeast breeding
